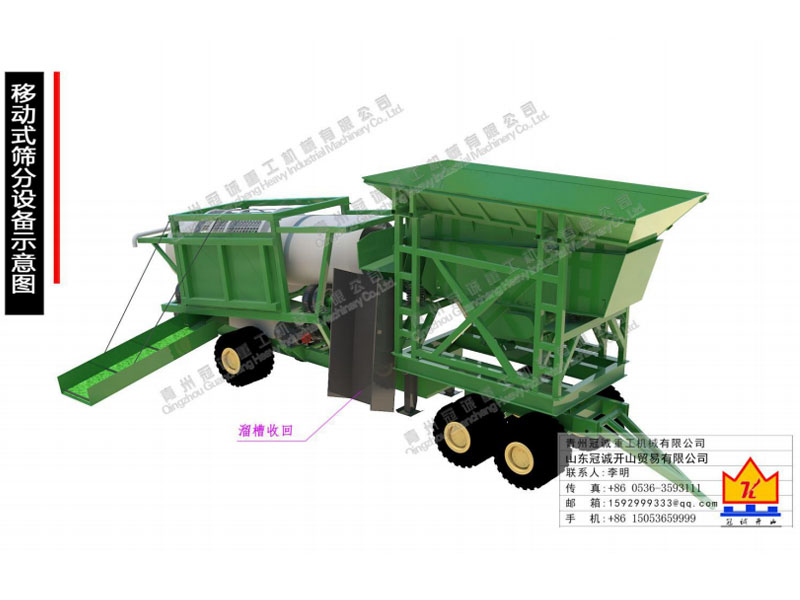

移動式石英砂除雜設備部分參數

底盤chassis
三軸 12 條 9.00-2#輪胎；
自制重型汽車底盤，采用 30#\25#工字鋼梁焊接


振動給料機Vibrating feeder
給料槽規格：4800X1000，20mm 厚板
料斗：4800X2300，16mm 厚板
上層篦條：28*90 鏈條鋼，間距 70mm
Feed tank specification: 4800X1000, 20 mm thick plate
Hopper: 4800 x2300, 16mm thick plate
Upper grate: 28 * 90 chain

絞洗篩Shaftless rollerscreen
規格：?1.6X6 米；
絞洗筒：?1.3 米，長約 2.3 米，板厚 12mm，內設整
條+分段式鉸刀；
滾筒篩：內徑 1.3 米，外徑 1.6 米，長度 3 米；
內層編孔材質為耐磨提油桿，孔徑 40*240mm;
外層捆綁 6mm 耐磨錳鋼篩網；
托輪：4 組共 8 條 6.50-10 實心工程輪胎；
供水系統：采用中央供水+側沖水方式，中央供水部分
采用可拆卸式防堵噴水咀，60°交叉扇形均勻噴水。
電機：7.5KW 擺線針*2 臺
Specification: ? 1.6x6m;
Mixing drum：It is 1.3m long, about 2.3m long and 12mm
thick. It is equipped with a whole + segmented reamer
Shaftless roller screen：The inner diameter is 1.3m, the
outer diameter is 1.6m and the length is 3M;
The inner layer is made of wear-resistant oil lifting rod
with an aperture of 40 * 240mm;
The outer layer is bound with 6 mm wear-resistant
manganese steel screen;
Supporting wheel: 4 groups of 8 6.50-10 solid
engineering tires in total;
Water supply system: central water supply + side
flushing mode is adopted, the central water supply part
adopts removable anti blocking water nozzle, and 60 °
cross fan-shaped uniform water spraying.
